Important Notes:

This product does NOT include ESP32 / ESP32-S3 board.

Overview:

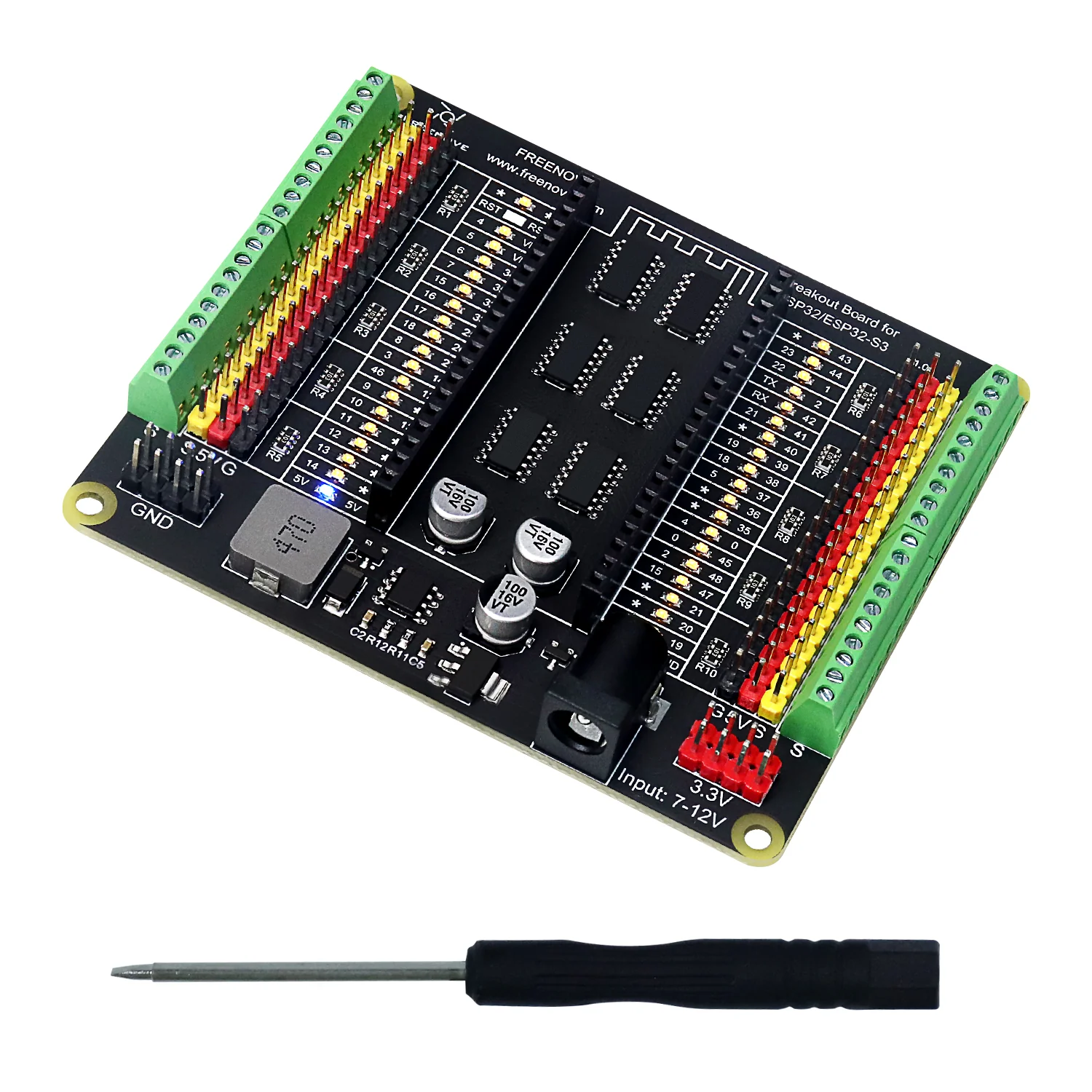

This breakout board can help you wire and know the status of the GPIO.
Just plug Freenove ESP32 / ESP32-S3 board into this board to complete the installation.

We provide free technical support to help you with any questions and problems.

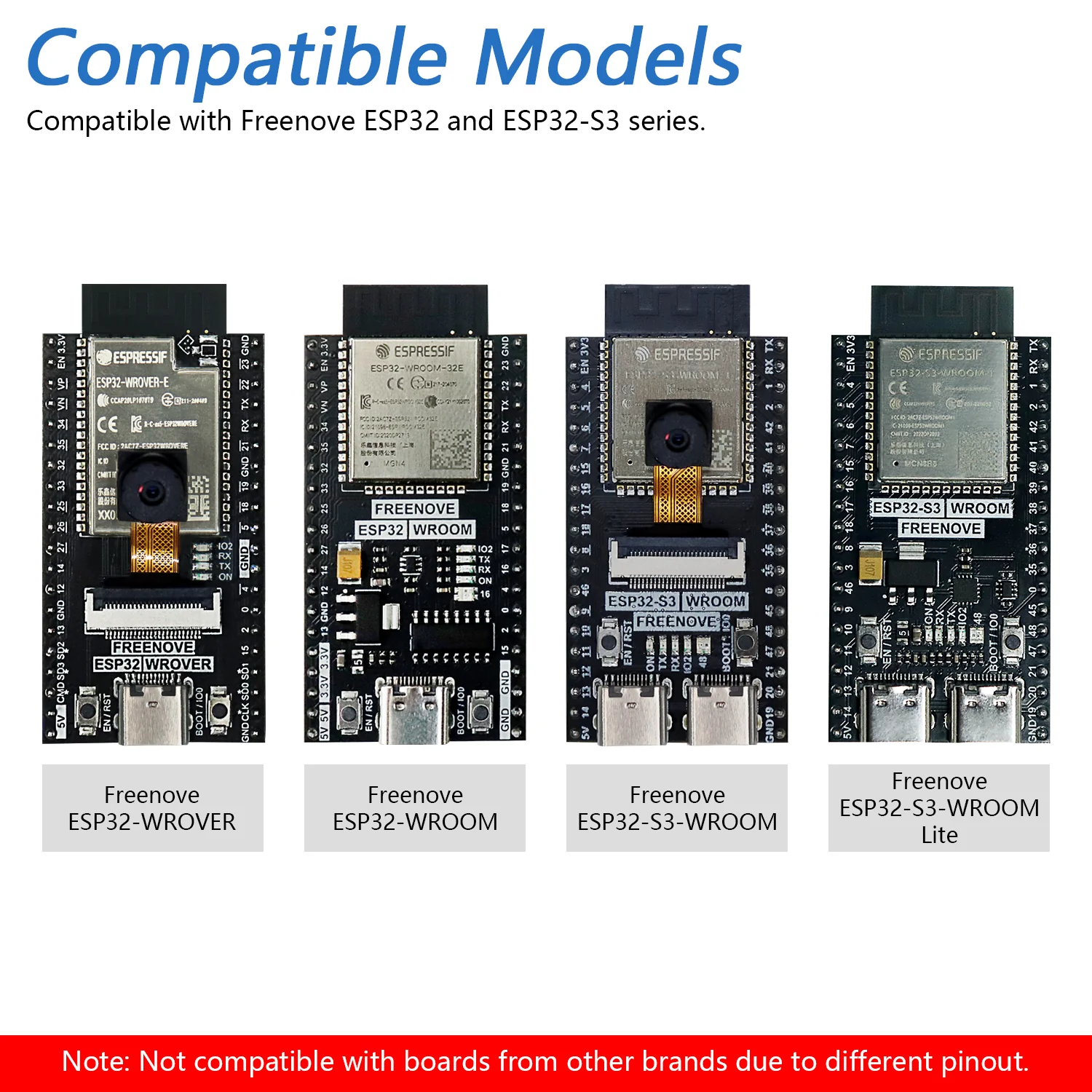

Compatible Models:

* Freenove ESP32-WROVER Board (FNK0060)
* Freenove ESP32-WROOM Board (FNK0090)
* Freenove ESP32-S3-WROOM Board (FNK0085)
* Freenove ESP32-S3-WROOM Board Lite (FNK0099)

Note: Not compatible with boards from other brands due to different pinout.

Main Features:

* Tutorial
Comes with tutorial to show how to use. (Download needed, no paper tutorial.)
You can download it before purchasing:

http://freenove.com/fnk0091

* GPIO status LED
LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.

* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

* Power circui

For ESP32

Price

Collections

Freenove Breakout Board for ESP32 / ESP32-S3 WROVER WROOM, Terminal Block Shield HAT with Pin Header, 5V 3.3V Power Outputs, GPIO Status LED
